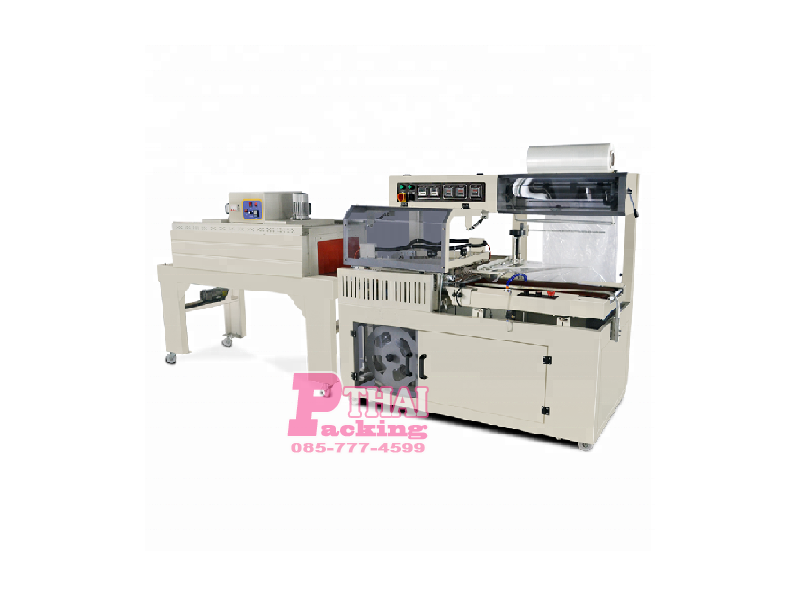

เครื่องอบฟิล์มหดอัตโนมัติ รุ่น FL-450A – BS-4522N
Product Description:
FL-450A semi-auto L-type sealer and BS-4522N shrink tunnel are suitable for packing boxes, toys, electronic bricks and so on. The two machines can pack the products with a layer of plastic film, which makes the packaging more beautiful and firm
Product Feature:
The machine adopts heating and stickiness free seal knife, which ensures the machine running well and without smoke.
The time, transferring the products to the tunnel after sealing and cutting, is adjustable. Working with shrink tunnel, high efficiency, more convenient.
Product Specification :
Model FQL450A Commodity L-type sealer Voltage 220V 50-60HZ Heater power 2KW adjustable Conveyor speed 0-15m/min Max sealing size(L*W) 550*450mm Max conveyor loading 25kg Packing size(L*W*H) 1470*820*970mm Machine weight 95kg Cutting film POF,PVC,PP,PE
|
Model |
FL-450A |
FL-550A |
FL-750A |
BS-4522N |
|
Power |
1.5kw |
2.2kw |
3.5kw |
10kw |
|
Voltage |
AC 220V 1/3PH 50/60Hz |
|||
|
Max. Packing Size L×W×H |
L550×W450mm |
L650XW550mm |
L850XW750mm |
350*200mm |
|
Max. Sealing Size |
<500mm |
<600mm |
<800mm |
/ |
|
Packing Speed |
15-30bags/min
|
0-15m/min |
||
|
External Air Source |
6-8kg/cm² |
/ |
||
|
Shrink Film |
POF/PE |
POF/PVC/PE |
||
|
Machine Size L×W×H |
1650×880×1450mm |
1750×900 x1450 |
1950X1200X1550 |
1450*950*1750 |
|
Weight |
280kg |
350kg |
550kg |
320kg |
